CF-502(G) 50HP Small Dynamic Dry/Wet-land Crawler Farming Tractor |CF Machinery

This 50HP mini crawler tractor is specially designed for dry/wet-land farming users. It has two different configuration options, mainly targeting the different needs of users' working environments such as hilly-lands, greenhouses, and small fields etc..

  • Precision Production

  • Flawless Quality

  • Tech Innovation Hub

  • Enduring Support‌

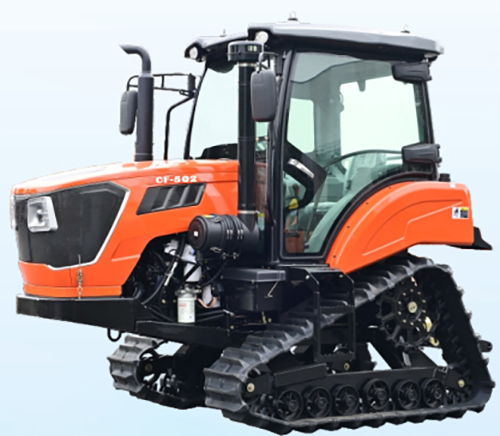

**CF-502(G)  Small Dynamic Dry/wet-land Crawler Tractor**

This 50HP mini crawler tractor is specially designed for dry/wet-land farming users. It has two different configuration options, mainly targeting the different needs of users' working environments such as hilly-lands, greenhouses, and small fields etc..


 **Key Highlights**

- **Power & Engine**  CF-502 is equipped with a robust 50 HP (36.8 kW) YD4C50GA engine, compliant. With China III emissions standards, ensuring both power and environmental responsibility.
- **Transmission**  Featuring a Hydrostatic Transmission (HST) with a 3-speed auxiliary gearbox, this tractor offers smooth operation and enhanced safety on slopes.
- **Maneuverability** The independent hydraulic steering system minimizes operator fatigue and allows. For efficient multitasking, making it easier to handle various tasks.
- **Terrain Adaptability** With rubber tracks and high ground clearance, CF-502G min. Ground clearance is 700mm, which can work cross-ridge Operation.And its rubber track protects your fields while providing excellent stability across diverse terrains.
- **Versatility** This tractor is installed with hydraulic Rear 3 Point Hitch to compatible with a wide range of standard implements, making it ideal for plowing, trenching, transporting, and more.

**Main Technical Parameters**

型号Model / CF-502 CF-502G
名称Product Name / 50HP Small Crawler Tractor 50HP Small Crawler Tractor
外廓尺寸(XX高)
Product Dimension(LXWXH)
mm 2990 x 1560 x 2300 3251 x 1560 x 2710
最小使用质量Product Weight kg 1600 2225
最小离地间隙 Ground Clearance mm 410 700
履带 Rubber Track Spec Pitch×Pcs×Width 90 x 46 x 350 90 x 54 x 300
轨距Track Gauge mm 1080 1200
发动机 Engine  / YongDong YD4C50GA YongDong YD4C50GA
起动方式 Start Mode / Electric starter Electric starter
进气方式 / Normally aspirated Normally aspirated
配套动力标定功率 Rated Power kw 36.8 36.8
配套动力标定转速 Rated Speed r/min 2400 2400
变速箱结构 Drive system /
 Manual shift+HST
4 forward + 2 Reverse gears
 Manual shift+HST
4 forward + 2 Reverse gears
动力输出轴转数 Power Output Speed r/min 624/960 624/960
转向系型式 Steering Mode / Clutch Steering
Planetary Differenitial Steering
转向系转向操纵机构
Steering Operation Method
/ Operation Lever Operation Lever
驾驶室 Cabin / Optional Optional
地表压力比Pressure Rate Kpa 18.98 25.12
