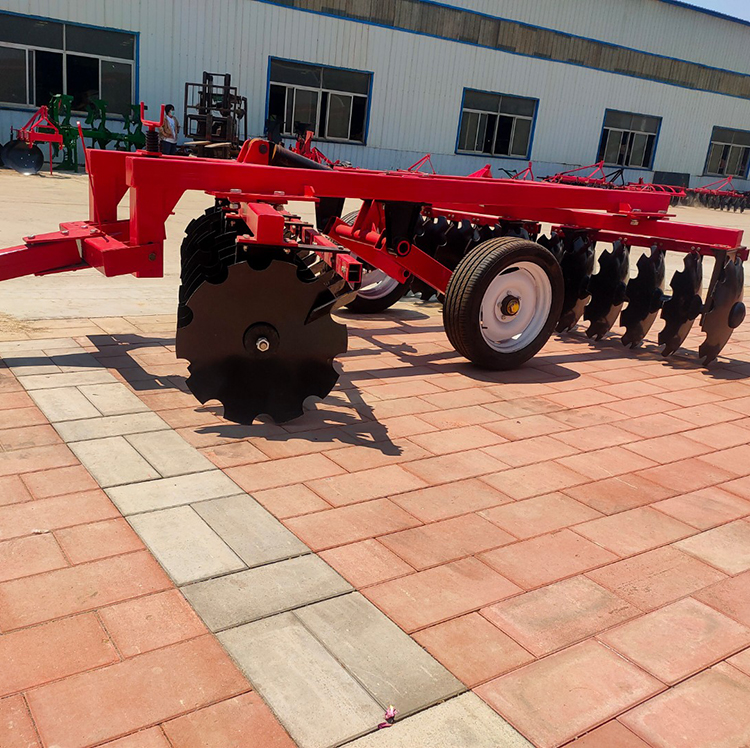

CF-DH(BZW) Series: Dominate Tough Soil with Industrial-Grade Tillage
Key Features & Benefits:
✅ Deep Tillage Performance:
· 180–220mm Working Depth: Breaks compacted soil layers for superior aeration.
· 660mm Manganese Steel Discs: Engineered for abrasive conditions (rocky/clay soils).
✅ Robust Construction:
· Reinforced Steel Frame: Supports 1,600–2,500kg weight for stability during heavy-duty operations.
· Optional Bearings: Choose between 38mm Round Shaft with Oil Bearings or 40mm Square Shaft with Grease Bearings for reduced wear.
✅ Scalable Efficiency:
· 5 Models (2.0m–3.4m): Match tractor power (80–140 HP) and field size.
· Trailed Linkage Design: Quick attachment to tractors for seamless workflow.
Technical Specifications Table:
Weighted Heavy Duty Disc Harrow
Unit
CF-BZW2.0
CF-BZW2.2
CF-BZ-2.5
CF-BZWY3.0
CF-BZW3.4
Working Width
mm
2000
2200
2500
3000
3400
Working Depth
mm
180-220
180-220
180-220
180-220
180-220
Disc Dia
mm
18
20
24
28
32
Disc Qty
pcs
660
660
660
660
660
Harrow Weight
kg
1600
1780
1950
2100
2500
HP
80
90
110
120
140
Linkage
/
Trailed
Device Optional
/
Standard Specs (All Models):
- Disc Diameter: 660mm
- Working Depth: 180–220mm
- Linkage Type: Trailed
Applications:
- Large-Scale Farms: Rapid soil prep for corn, wheat, and soybeans.
- Vineyards & Orchards: Deep tillage to enhance root penetration in dense soils.
- Soil Rehabilitation: Reclaim hardened or eroded fields for cultivation.
- Arid & High-Clay Regions: Optimized for drought-prone or sticky soil conditions.
Why Choose CF-DH(BZW)?
- Proven Durability: Tested in African savannahs and Southeast Asian clay fields.
- Customizable Bearings: Extend lifespan with low-maintenance lubrication options.
- Fuel Efficiency: Balanced weight-to-power ratio minimizes tractor strain.
