CF-(DH) BQ Series: Precision Soil Prep for Light to Medium Soils
Product Overview

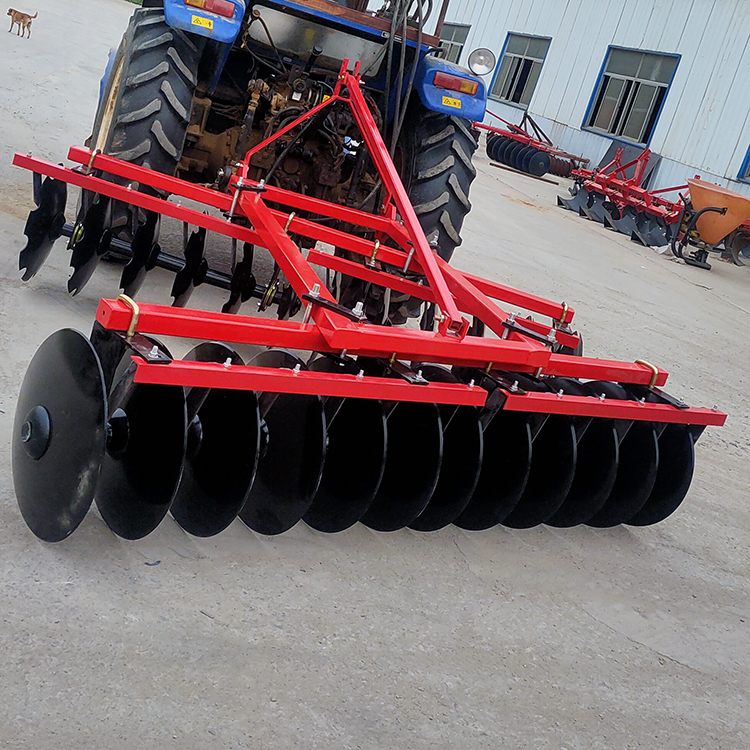

The CF-(DH) BQ Series Mounted Light Duty Disc Harrow is engineered for efficient post-plowing soil refinement. With adjustable working widths and a durable design, it streamlines seedbed preparation, organic matter mixing, and stubble burial while minimizing tractor strain.
Key Features & Benefits
✅ Optimized Soil Conditioning:
- 12–24 High-Strength Discs (460mm Diameter): Crush clods and level soil with minimal passes.
- 120mm Working Depth: Ideal for light/medium soils to enhance aeration and seedbed uniformity.
✅ Lightweight & Maneuverable:
- Compact Weight (200–360kg): Reduces fuel consumption while maintaining stability.
- Cat I/II Hitch Compatibility: Quick attachment to 15–60 HP tractors for flexible farm workflows.
✅ Scalable Efficiency:
- 6 Models (1.1m–2.3m): Match field size and tractor power (15–60 HP).
- Tool-Free Adjustments: Modify disc angles for varying soil conditions in minutes.
Technical Specifications
| Light Disc Harrow | |||||||
|
Model |
Unit | CF-BQ1.1 | CF-BQ1.3 | CF-BQ1.5 | CF-BQ1.7 | CF-BQ1.9 | CF-BQ2.3 |
| Working Width | mm | 1100 | 1300 | 1500 | 1700 | 1900 | 2300 |
| Working Depth | mm | 120 | 120 | 120 | 120 | 120 | 120 |
| Disc Dia | mm | 460 | 460 | 460 | 460 | 460 | 460 |
| Disc Qty | pcs | 12 | 14 | 16 | 18 | 20 | 24 |
| Harrow Weight | kg | 200 | 220 | 240 | 260 | 310 | 360 |
|
Matchable Tractor Power |
HP | 15 | 18 | 25 | 40 | 50 | 60 |
| Linkage | / | Mounted Cat l | Mounted Cat Ⅱ | ||||
| Device Optional | / | / | |||||
Standard Specs (All Models):
- Disc Diameter: 460mm
- Working Depth: 120mm
- Material: Galvanized steel frame, manganese steel discs
Applications
- Post-Harvest Soil Refinement: Break clods and mix crop residues into soil.
- Pre-Sowing Preparation: Level seedbeds for uniform germination.
- Organic Matter Integration: Blend compost/fertilizer into topsoil.
- Stubble Management: Bury weeds and light stubble efficiently.
Why Choose CF-(DH) BQ Series?
- Proven Simplicity: Farmers in Southeast Asia report 30% faster field prep vs. traditional methods.
- Low Maintenance: Sealed bearings and corrosion-resistant materials reduce downtime.
